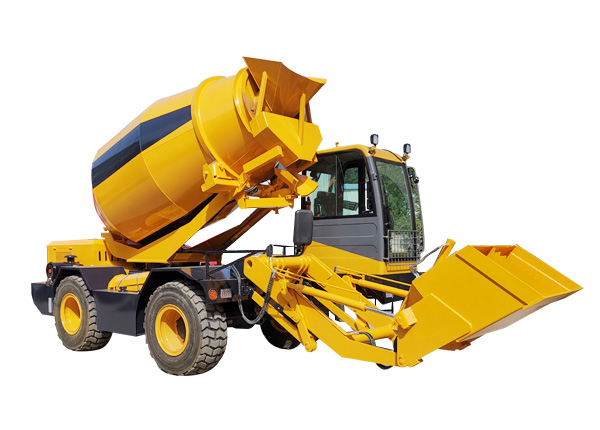

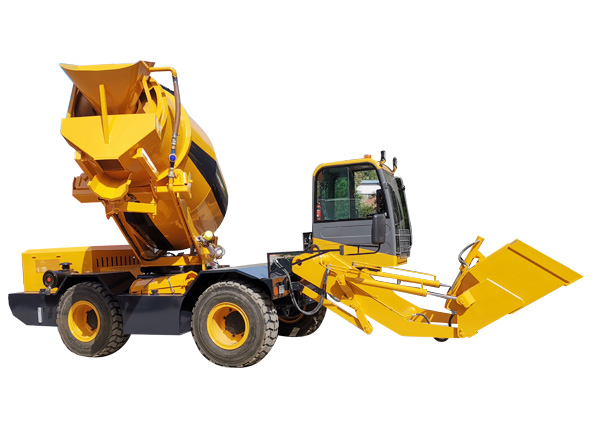

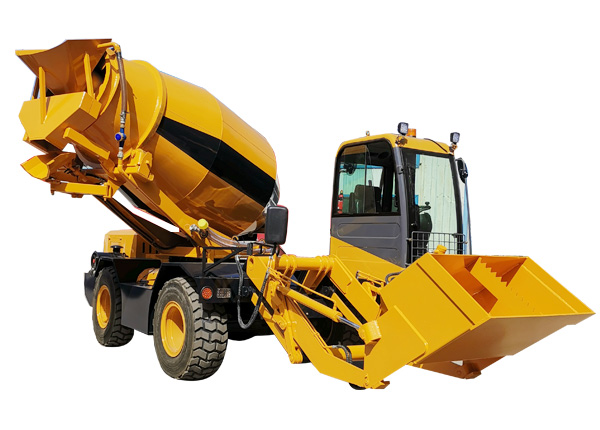

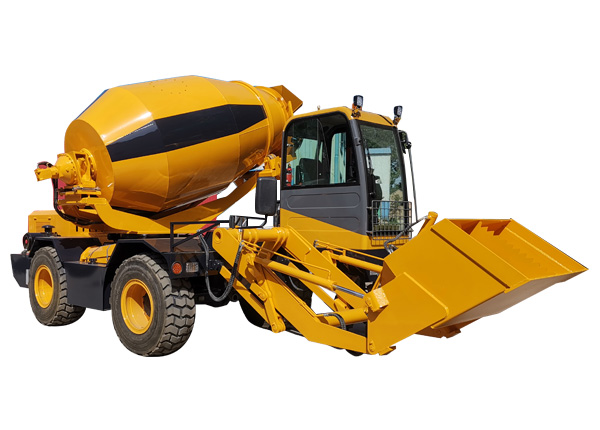

3.5m3 MIXER LOADER
- 产品分类：self loading concrete mixer
- 浏览： 日期：2019-06-11
产品描述
4cbm self loadng concrete mixer truck,3.5cbm self loadng concrete mixer truck,1.5cbm self loadng concrete mixer truck
Features:The mixer truck equip with weight system, which can be matched with different grades of concrete such as C30, C25, C20, etc.The machine drum can rotate 270 degree
|
Main Parameter |
ZY 3500 |
|
Drum capacity |
5.4cbm |
|
Real concrete yield per batch |
3.5cbm |
|
Weight system |
Made in China |
|
Productivity |
Up to four batches per hour |
|
Transmission |
Hydraulic 液压 |
|
|
4 wheel driver,2 wheel steering |
|
Tyre size |
16/70-20 |
|
Engine |
Yuchai |
|
Model |
YCD4J22T-115 |
|
|
Diesel Water-cooled |
|
|
85 kw |
|
Speed Range |
F1:1-8 KM/H |
|
|
F2:8-25 KM/H |
|
|
R1:1-8 KM/H |
|
|
R2:8-15 KM/H |
|
Discharge |
270°,discharging concrete |
|
JOYMIX |
One joystick control main functions |
|
Weight |
7300kg |
|
Overall dimension(L*W*H) |
7.5×2.5×3.2m |
